Integrated Scintillation Performance Measurement System

The scintillation performance comprehensive measurement system is a multi-parameter acquisition system for scintillation materials based on nuclear physics fast electronics technology. The instrument uses Windows interface software to control and collect data, and uses a program based on big data special analysis software PAW to analyze the obtained data in detail offline. The system can accurately measure scintillation emission down to 4 p.e. / MeV (photoelectron / megaelectron volt) and decay time of over 500 ps.

Technical Indicators:

1. Light output parameter measurement index

Minimum light output: 4p.e. / MeV (~30photons/MeV)

Maximum light output: unlimited

Systematic error of light output measurement: < 1% (BGO, LYSO)

Temperature stability: 0.01% / ℃ (0 ~ 50℃)

2. Measurement indicators of sub-nanosecond scintillation decay kinetic parameters

Using a single energy gamma particle as the excitation source (such as the 662 KeV gamma particle of Cs-137)

Flicker dynamics measurement range: 500 ps ~ 5 us

Scintillation kinetics measurement accuracy: ± 3% (LYSO, BGO)

Application

• For measuring light output, sub-nanosecond scintillation decay kinetics (decay time) of scintillation materials, etc.

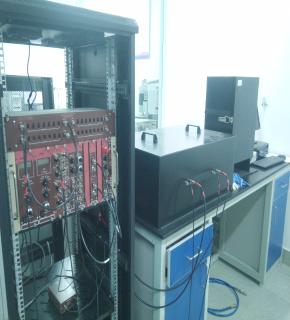

Instrument and Result Display

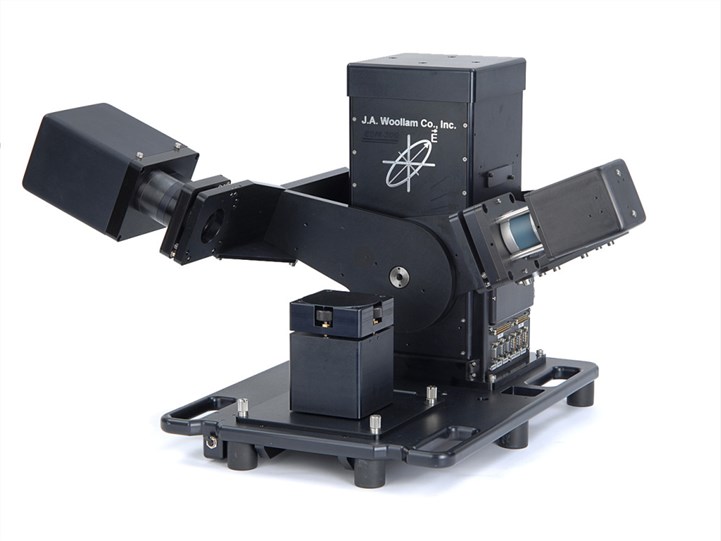

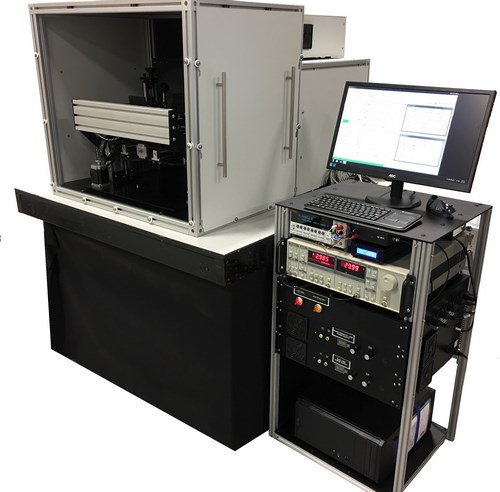

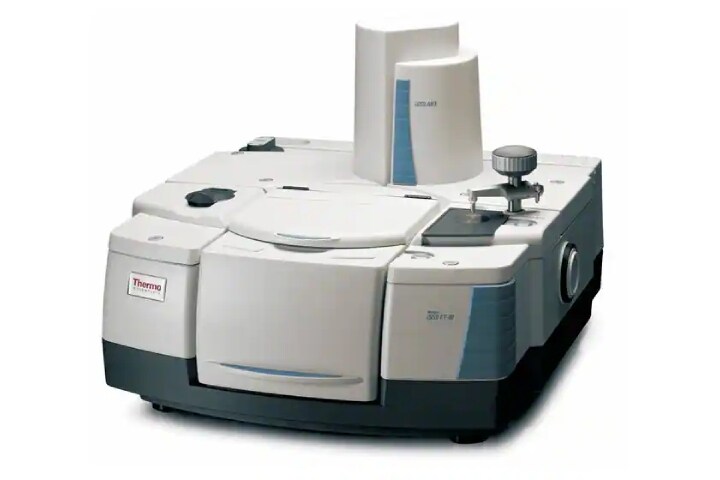

Recommended Projects

For more information about our integrated scintillation performance measurement system testing services, please contact us.
