Wideband Dielectric Constant Tester

Dielectric properties are extremely important properties of dielectric materials. In practical applications, the dielectric coefficient and dielectric loss of dielectric materials are very important parameters. The broadband dielectric constant tester is controlled by a single-chip computer. The measurement core adopts new technologies such as frequency digital lock, standard frequency test point automatic setting, resonance point automatic search, Q value range automatic conversion, numerical display and other new technologies, which improves the tuning circuit and minimizes the residual inductance of the tuning test circuit. It also retains the automatic amplitude stabilization technology in the original Q meter, making the new instrument more convenient to use and more accurate in measurement.

Sample Requirements

  • Solid: a disc with a diameter greater than 20 mm and a thickness less than 4 mm. If it is powder, it needs to be pressed into tablets.
  • Liquid: non-corrosive, more than 10 ml.

Application

  • Measure the dielectric properties of materials under variable temperature and variable frequency conditions

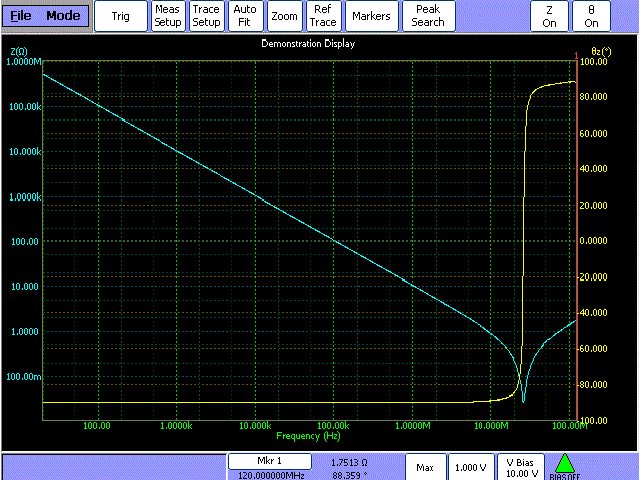

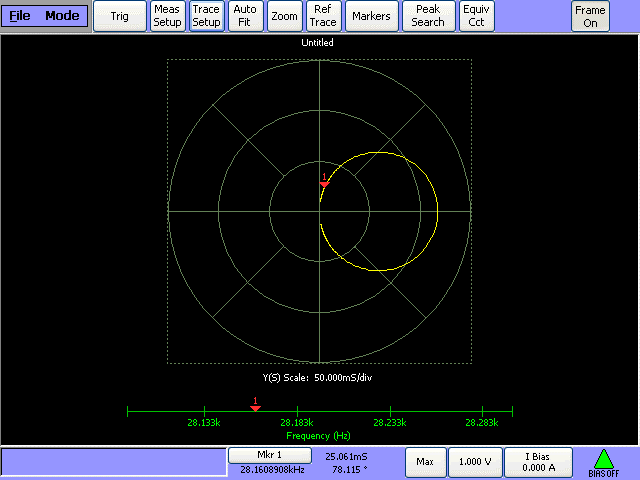

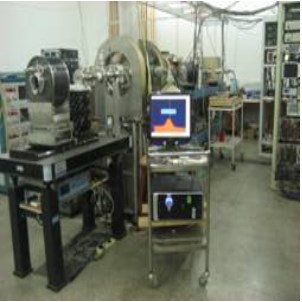

Instrument and Result Display

Wideband Dielectric Constant Tester

Wideband Dielectric Constant Tester

Wideband Dielectric Constant Tester

Recommended Projects

For more information about our wideband dielectric constant tester testing services, please contact us.
